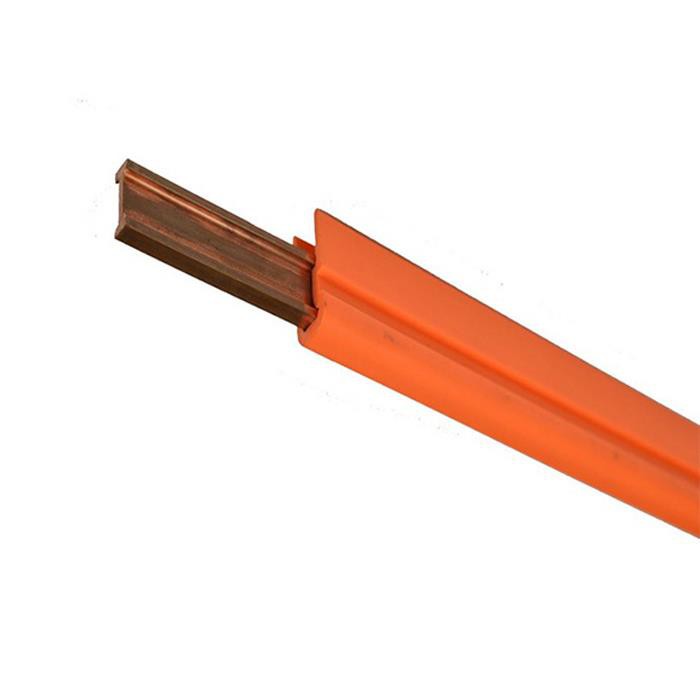

Multipole Copper Conductor Rail

Features:

The multi-level transmission busbars are concentrated in one conduit and are easy to install. Its fixed bracket, connection and suspension device are all provided by standard parts. Its biggest advantage is that its conductor is continuous and long, the joint is less, the fault point is less, the operation is more reliable, and the conductor is pure copper.

Introduction:

The sliding contact products have a phase spacing of 13mm, and the AC resistance and the inductive reactance value are lower than any other forms of safety sliding lines, saving energy; the production and product volume are small, the three-line shape is 52x51mm, and the four-line shape is 71×51mm. The occupied space is small, and the round orphan segments of various radii can be processed according to user requirements;

Component Introduction

The multi-stage copper tube type conductor rail is composed of high-strength engineering plastic insulated conduit or aluminum alloy protective shell, multi-level conductive copper row, current collector, suspension and fixing components.

It can be equipped with a safety rail of the same length according to the length of the user's workshop or the user's needs, so that there is no interface in the middle of the safe distribution of the whole workshop, which really solves the problem that the conductor rail often stuck the collector due to the interface. Short circuit or inoperable problem.
