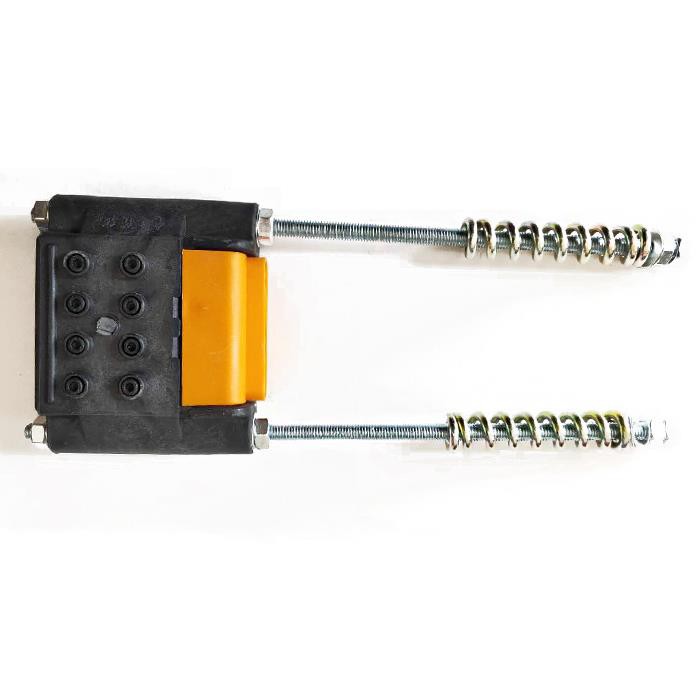

4p Insulated Conductor Rails Tensioner

Product Detail s : Simple structure, easy for installation. Current: 50~140A Rated value: 4P, 600V, 50~140A. Conductor material: Copper. Insulated sleeve material: UPVC(heat resistance: 75℃). Product Description: It is a new type of industrial mobile power feeding system, and the most typical...

Send Inquiry

Product Details:

Simple structure, easy for installation.
Current: 50~140A

Rated value: 4P, 600V, 50~140A.
Conductor material: Copper.
Insulated sleeve material: UPVC(heat resistance: 75℃).

Product Description:
It is a new type of industrial mobile power feeding system, and the most typical advantage is the light weight and tender nature, easy for carry and install. The conductor bar has 3 poles and 4 poles two choice, with a current capacity about 50A to 120A, especially used to carry low power.

Technical Parameter:

Type	Poles	Conductor Cross Section(mm²)	Max. Current(A)
ZG-1004	4	3×10+1×0.9	50A
ZG-1504	4	3×15+1×1.0	80A
ZG-2004	4	3×20+1×1.0	100A
ZG-2504	4	3×25+1×1.2	120A
ZG-3504	4	3×35+1×1.5	140A
