How the sliding line works？

Introduction of main components of slide contact line

(1)Power supply safety sliding contact line series of products are the reference of the relevant foreign materials and products, and for the domestic lifting facilities exposed sliding line prone to accidents in the case of innovative development and production. This series of products has three types: compound type, square type and split type safety sliding contact line.

(2) the power supply safety sliding contact line series products developed by the institute are complete and widely used, which can be used for lifting machinery in places such as guangzhou mining, warehouse, station, port and wharf, such as electric hoist, beam and bridge crane; Elevators, automated production lines, and other conductive equipment for mobile operations.

(3) according to the lifting machinery type, the user can correctly select the appropriate specifications of power supply safety contact line, so as to meet the requirements of the lifting machinery's power consumption, but also to save electricity, energy saving, reduce energy consumption and other technical and economic indicators.

(4) the correct selection of power supply safety sliding contact line is the key to obtain good technical and economic effects of zui. According to the reliability study, the adoption of this sliding contact line can improve the reliability of the system by two orders of magnitude. The user should refer to this manual in detail when selecting the power supply sliding contact line to fully understand the performance and characteristics of the product, so as to obtain the good use effect.

The main components of the sliding contact line and their working principlesThe power supply safety sliding contact wire device is composed of two main components, the guide, and some auxiliary components, as shown in the figure.

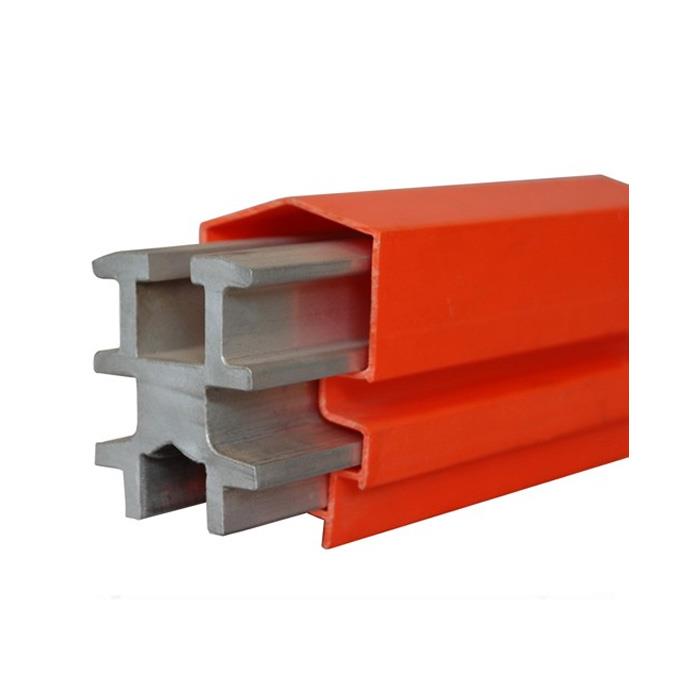

1. Catheter: it is a semi-closed special-shaped tubular part, which is the main part of the safety slip contact line. The inner part can be embedded with 2-9 naked guide rails as the power supply conductor according to the needs. The guide rails are insulated from each other and the outer shell, so as to ensure the safety of power supply. And in the live maintenance of the maintenance personnel effectively prevent electric shock accident. The length of each tube of our factory is 4m, which can be connected into any length required. Generally, the tube is made into a straight line, and can also be made into a circular arc according to special needs.

2. The sliding contact wire guide is a set of brush shell frame running in the conduit, which is driven by the drawing fork (or traction link, etc.) placed on the electric mechanism (truck, car, electric hoist, etc.) to run synchronously with the electric mechanism, and transmit the electric energy of the brush to the motor or other control elements through the guide rail. The number of poles of the guide brush is 3-16 corresponding to the number of guide rails in the guide tube.
