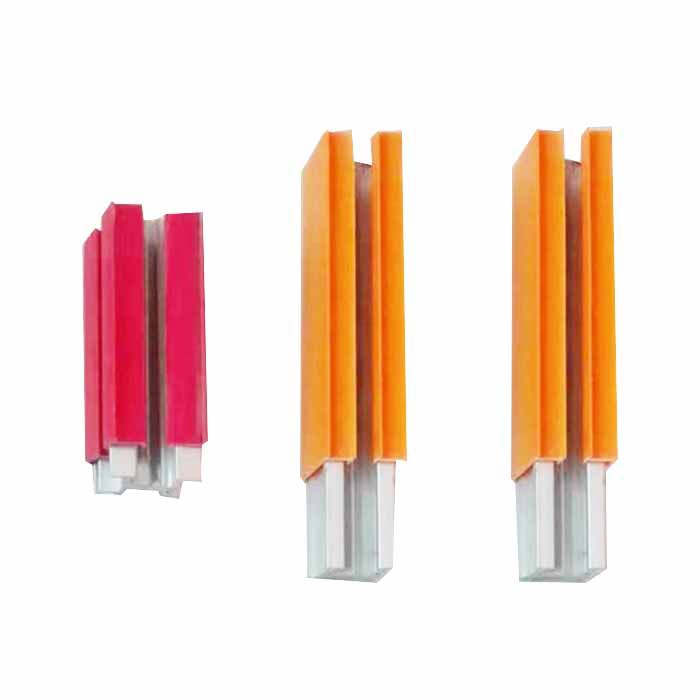

Pvc Housing Copper Conductor Rail

Before sliding contact line installation install Angle bracket according to user's choice of form, according to the sliding contact line hanging distance between the fixed well, put every 6 meters at the scene of the installation position the required a sliding contact line suspension bridge, and both ends of each a joint sheath, also fitted with an aluminum joint at one end. Aluminum joints when loading should be paid attention to only the aluminium guide into joint 1/2 left to another guide rail connection with the above work ready, put a stick of a sliding contact line hanging on the scaffold, are all connected, it should tighten the screws of each joint. When the length of the whole line of the sliding contact line exceeds 200 meters, it should be installed (the expansion device is available at any time). When the power line is connected, it can be connected at the junction of every 6 meters.

Angle bracket, single hole, three hole or four hole lift clamp, aluminum joint, joint failure protection, end sheath, fixed clamp, power input, collector, collector bracket optional accessories: service section, temperature compensation device, indicator light. Lifting clamp is divided into: single-hole lifting clamp (heavy), three-hole or four-hole lifting clamp (light), its material is polyjiaxin, with high hardness, anti-corrosion, anti-aging characteristics, it can support the suspension of sliding wire, and can be fixed in the horizontal and vertical direction of sliding wire. At the same time, the vertical direction can be fine-tuned to ensure the safety of the contact line and the collector close connection. The safety sliding contact line only needs two with the sheath when the lifting and hanging clip is fixedThe lifting lug on the side can be easily installed without any tools.

The aluminum joint is mainly used to connect two single-pole safety sliding contact lines. It adopts the same material as the guide rod of the single-pole safety sliding contact line, and increases the contact area with the two guide rods, which ensures the same characteristics as the guide rod and reduces the loss of energy. The joint sheath is made of special PVC raw material and processed with special formula. Stainless steel fine mold and special process for production, size stability, small tolerance range, good quality, high finish, strong toughness, temperature resistance, corrosion resistance, waterproof, dustproof, anti-aging, anti-wind corrosion, long service life and other advantages.
