Steel Pipe Rail Trolley

Input Voltage: <600V Output Voltage: <600V Output Power: 75Amp Output Frequency: 50-60Hz Output Current: 0-200A Type: Safety Power Rails for Overhead Crane Alias: Conductor rail, Conductor bus bar Voltage: <600V Application: Overhead crane or moving machine 75A Copper dimension: 2*10mm...

Send Inquiry

Input Voltage: <600V

Output Voltage: <600V

Output Power: 75Amp

Output Frequency: 50-60Hz

Output Current: 0-200A

Type: Safety Power Rails for Overhead Crane

Alias: Conductor rail, Conductor bus bar

Voltage: <600V

Application: Overhead crane or moving machine

75A Copper dimension: 2*10mm

100A Copper dimension: 2*2.8mm

Insulator: PVC

Copper purity: >99.9%

Poles: 6P

Attention! The copper thickness and width is crucial for power rails selecting!! Some companies reduce the copper to lower the price in the same ampere rating power rails.

Actually, it sacrifices your safety and privilege. Less copper will make your equipment consume more energy and sometimes the overheat will cause the fire!!

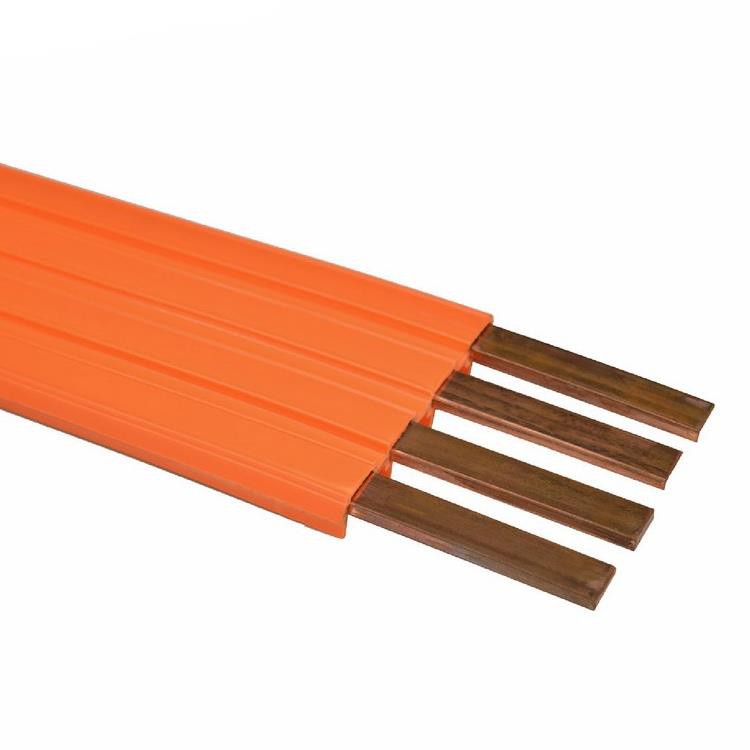

8-1

Type	Capacity (A)	Copper Thickness (mm)	Copper Width (mm)	Weight (Kg/m)
Three in one 75A	75	2	10	0.8
Three in one 100A	100	2.8	10	1.03
Three in one 150A	150	3	10	1.14
Three in one 200A	200	3.8	11	1.42
Four in one 75A	75	2	10	1.1
Four in one 100A	100	2.8	10	1.4
Four in one 200A	200	3.8	11	1.9
Five in one 100A	100	2.8	10	1.7
Six in one 75A	75	2	10	1.64
Six in one 100A	100	2.8	10	2.06

8-2

8-3

8-2

8-3

Hot Tags: steel pipe rail trolley, customized, manufacturers, suppliers, factory
