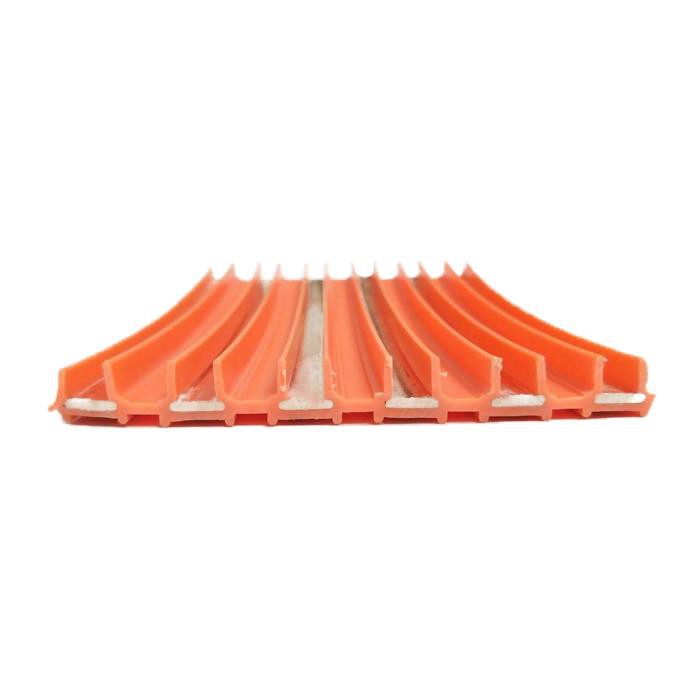

6p Seamless Conductor Rail

Product Introduction:

6p Seamless Conductor Rail a constant-current slip line. The power supply is made of oxygen-free copper (conductivity up to 99.99%), the thickness of the copper conductor is thick (the standard thickness is 2.8m/m×10W), the voltage drop is small, and the conductivity is excellent; it can be used according to the length of the user or the user. It is also suitable for curves, curves and high and low walking designs. So that the entire crane project is beautiful, clean and safe. In the ranks of automated production, it is definitely the best choice for power supply systems.

Features:

Safe, stable, no interface (except the power supply point), small size, easy to install, and economical;

6p Seamless Conductor Rail is installed without joints, which is simple and time-saving, and has small space; 6p Seamless Conductor Rail made of special material, stable operation, fast speed and low noise

The jointless conductor rail installation has a small bending radius.

Note for Seamless Conductor Rail:

When the 3-pole, 4-pole, and 6-pole slide wires are equipped with a curvature, side construction must be used.

Starting at the starting point of the turn, a slip clamp is placed every 0.5M.

The 3-pole, 4-pole and 6-pole end power tensioner erection must be about 5m/m higher than the slide clamp.

The waterproof cable runs down to the power cable puller, causing a short circuit.

The 3-pole, 4-pole, and 6-pole slide wires are not suitable for outdoor use or where the acid and alkali components are high.
