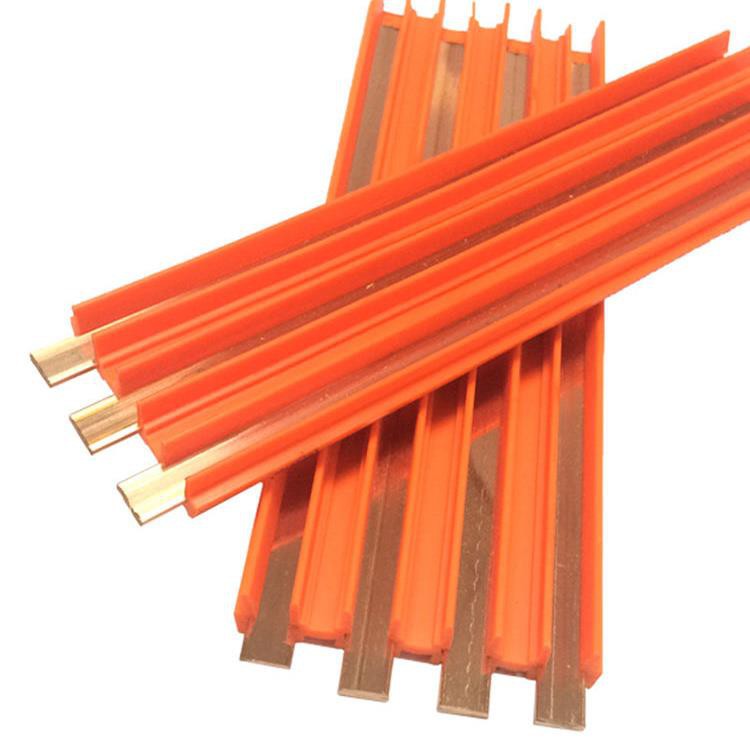

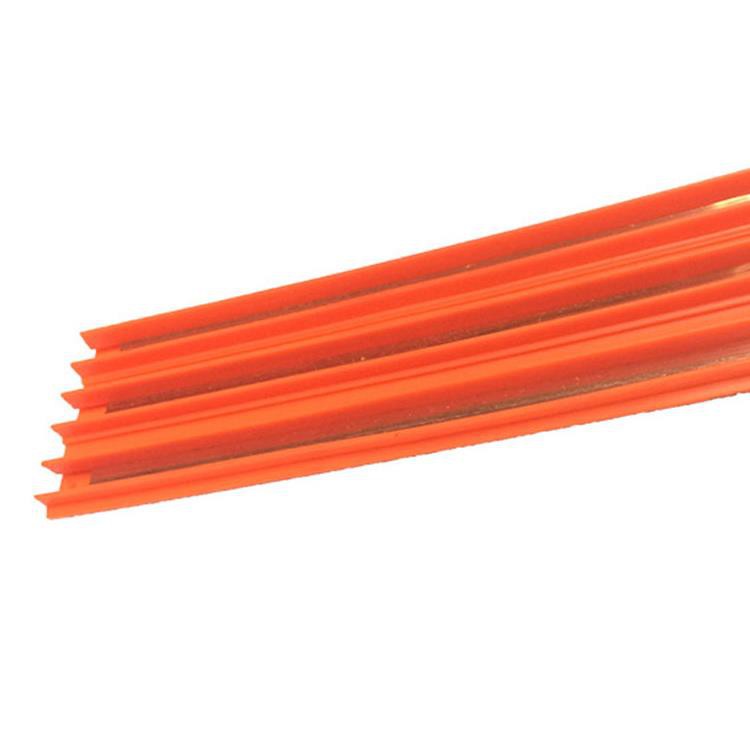

Electrification Cable Trolleys Flexible Conductor Rails

Place of Origin: Henan, China Application: Cranes,monorails,electric hoists,Mobile automation equipment Material: 99.9% Oxygen-free copper Copper,PVC[Housing] Color: Orange(Dangerous Color) Temperature resistance: VO Level Fire Rating -40°C -75°C Protection Class: IP20 Waterproof and dust level...

Send Inquiry

Place of Origin: Henan, China

Application: Cranes,monorails,electric hoists,Mobile automation equipment

Material: 99.9% Oxygen-free copper Copper,PVC[Housing]

Color: Orange(Dangerous Color)

Temperature resistance: VO Level Fire Rating -40°C -75°C

Protection Class: IP20 Waterproof and dust level

Pole: 3/4/6 Pole

Certificate: ISO9001 CCC CE

Rated Voltage: 380/660V

Rated Current: 30A-140A

Product Application

No seam slip line safe, stable, no interface (except power supply point) small size, space, easy installation, affordable, to adapt to a variety of corners with electric hoist.Product Application

Product Type Marking Instructions	MKD	X	Y	NA
Product model	Pole	Copper square	Rated current

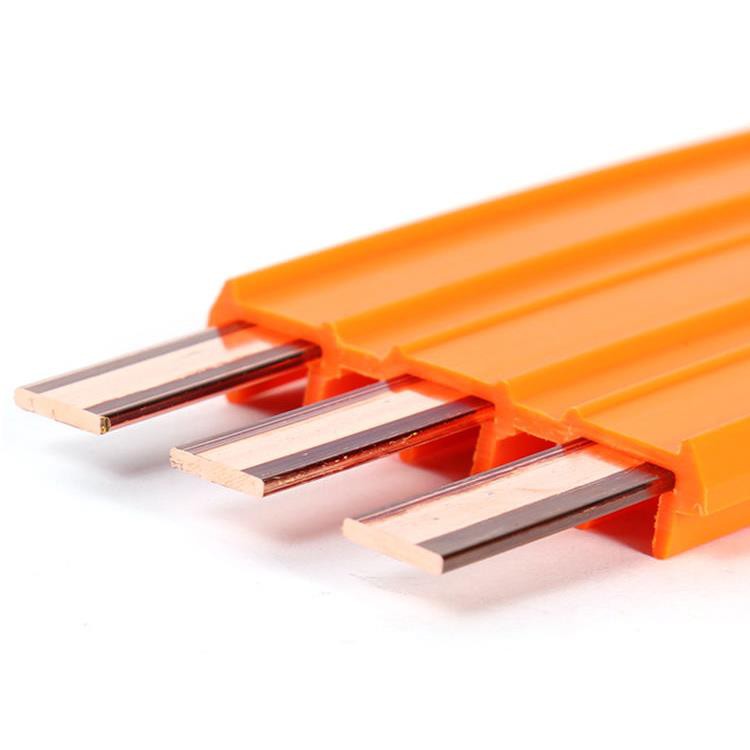

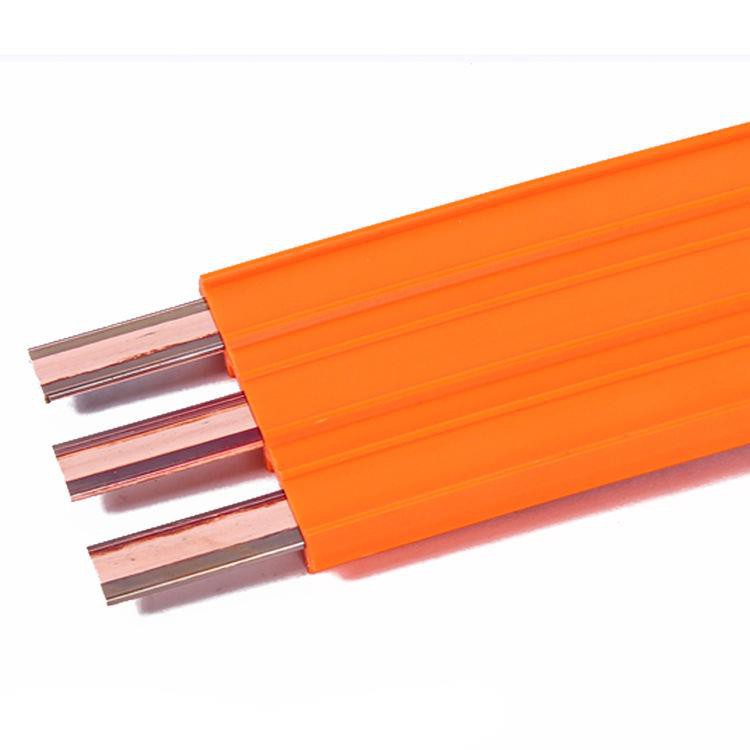

3P-Continuous Insulated Conductor Rails
Code	Type	Specification	Length	Weight(kg)
ZG-301	ZG-3-6-30A	6mm 2 -30A	1M	0.45
ZG-302	ZG-3-10-50A	10mm 2 - 50A	1M	0.58
ZG-303	ZG-3-16-80A	16mm 2 - 80A	1M	0.75
ZG-304	ZG-3-20-100A	20mm 2 -120A	1M	0.90
ZG-305	ZG-3-25-125A	25mm 2 - 125A	1M	1.00
ZG-306	ZG-3-35-140A	35mm 2 - 140A	1M	1.25

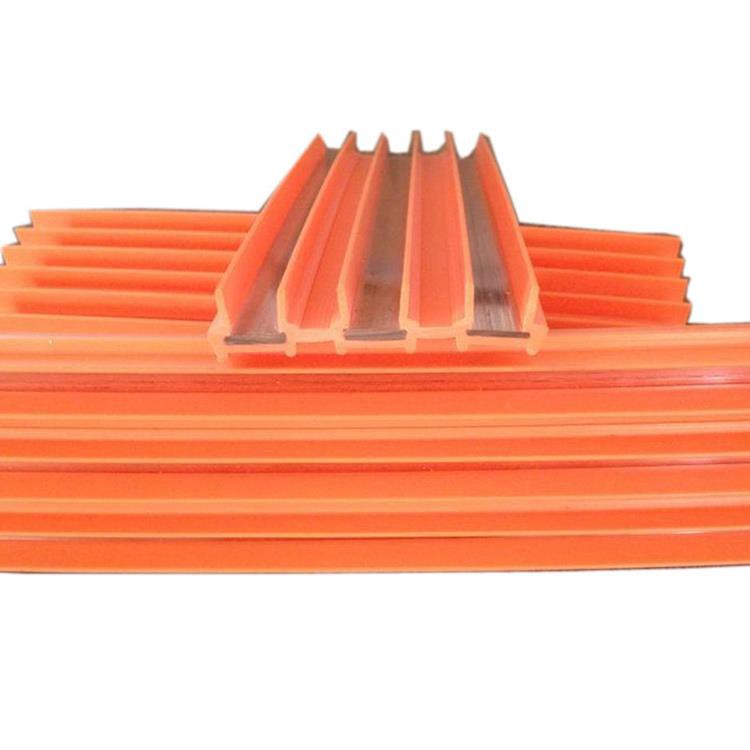

6-1

Main Features
1	Safe and reliable, protection class to IP20, waterproof, dustproof, to prevent finger electric shock.
2	Energy saving, the use of international general conductive materials, can minimize the power supply line in the power loss.
3	Maximum moving speed of 200 m / min.
4	Easy to install and often maintenance.
5	Long life, the unique form of the conductor sheath, a great increase in the life of the slide wire system.

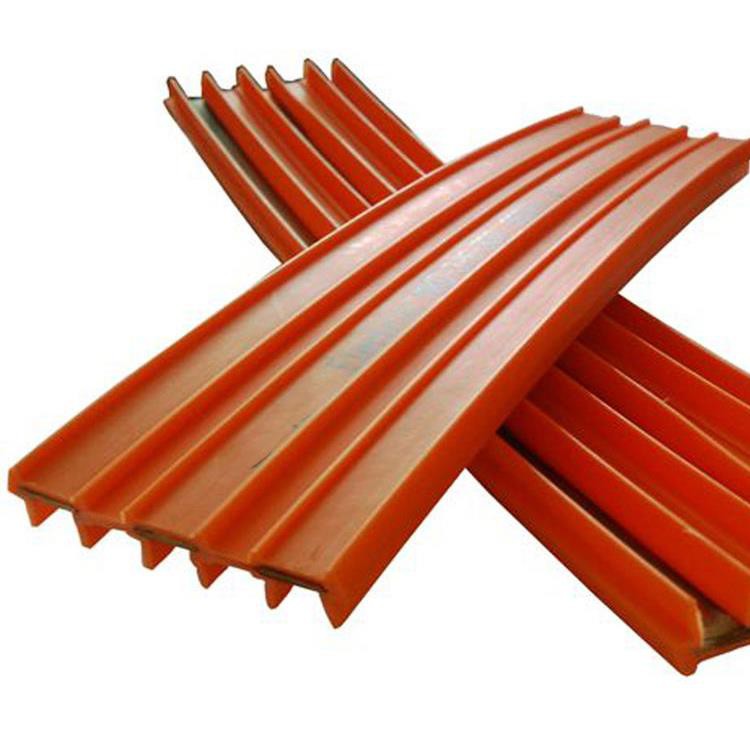

6	Can be made according to the work of equipment bending slip cable system.
7	Insulation sheathed with anti-UV ingredients for outdoor use.
8	Provide standard PVC insulation sheath and PPO and other heat-resistant insulation sheath, suitable for different working environment.
9	Full range of products can achieve VO level fire rating, -40 ° C environmental requirements.

FAQ

What is the material?	Using 99.99% of oxygen-free copper, PVC shell material
Is there a connector?	insulated conductor rails, no connector, current stable
Is there a gift?	Each 1.2 m slide standard comes standard with 1PCS rail clamp and 1PCS iron plate
Minimum order quantity?	1 Meter or according to customer demand
Delivery	15 working days after receipt of payment.
