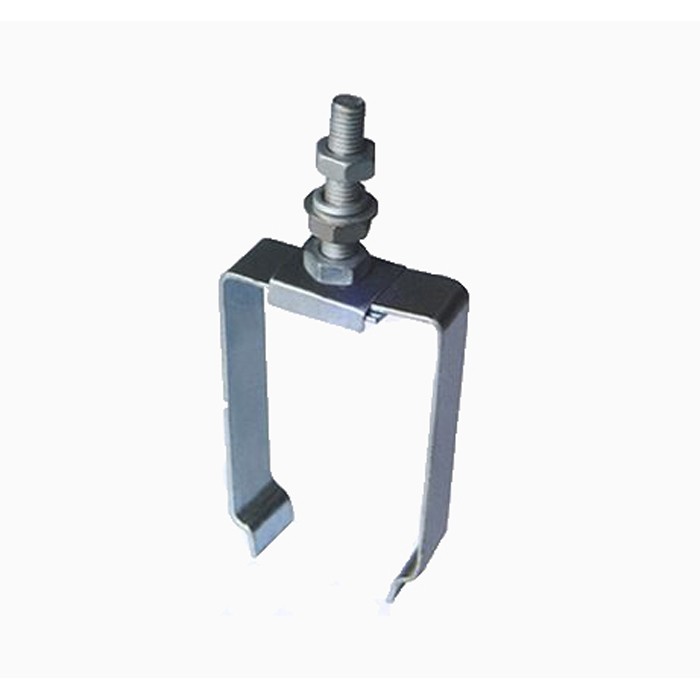

Multipole Safety Conductor Rail Hanger

The conductor rails is mainly divided into a single-pole aluminum conductor rails, a single-pole copper conductor rails, and a multi-pole safety conductor rails.

The sliding contact line, also known as the sliding wire, is a group of power transmission devices that supply power to the mobile device. When the conductor rails is installed, the conductor rails suspension bridge is needed. The conductor rails suspension bridge mainly protects the sliding contact line. . At present, most of the conductor rails suspension bridges appearing on the market are integrated overall structures, and the installation of the sliding contact lines is troublesome and the operation is inconvenient.

We provide a new type of sliding wire hanger to solve the problem of troublesome installation of the sliding wire.

The specific method comprises: a sliding wire hanger comprising a hanger body and a metal backing plate, wherein the bottom of the hanger body is provided with a snapping portion, and a portion of the hanger body is provided with a screw hole, and a top inner wall of the hanger body penetrates through the screw hole There is a screw, one end of the screw is provided with a fastening nut, a metal buffer plate is arranged on the inner wall of the page body of the hanger main body, a metal backing plate is arranged on the outer wall of the top of the hanger main body, and one side of the metal backing plate is fastened. Card slot.

The utility model has the beneficial effects:

The sliding contact suspension bridge has the advantages of simple structure, practical functions, convenient use, good protection effect on the sliding contact line, and a metal backing plate is sleeved on the top of the hanger main body, and one side of the metal backing plate is opened. The card slot is fastened, and the side of the fastening slot is semi-circular, which is consistent with the aperture structure of the screw. It is more convenient to install and convenient to disassemble. A metal buffer plate is provided at the top inner wall of the hanger body, and the metal is provided. There is a certain buffering effect between the elastic piece on the buffer plate and the conductor rails, which is mainly fixed by the screw and the fastening nut.
